Introductory words and pictures of chain-forming diatoms

Some diatoms do not separate after an asexual reproduction, but adhere together and form chain-like colonies. These colonies can take the form of filaments, ribbons, stars or fans. The picture above shows a section of a colony of Melosira sp. (click to enlarge). In cultures one can often observe such colonies consisting of thousands of connected diatoms.

All following pictures are taken from cultures. For a larger view, first click on the displayed picture. The small thumbnails at the bottom of the first picture of a gallery can be enlarged by clicking on them.

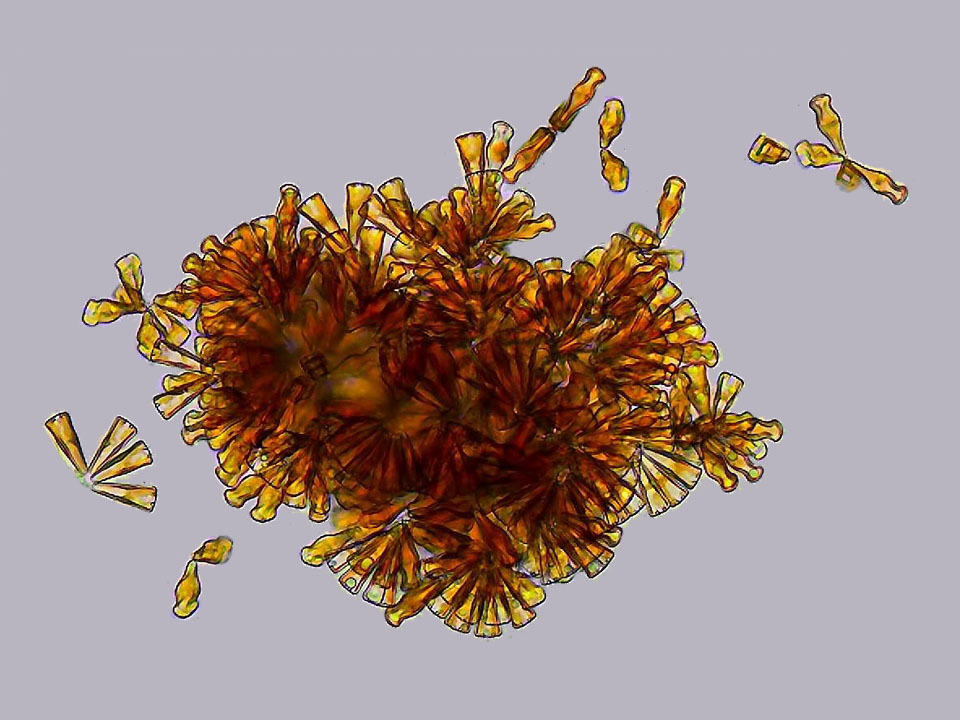

In the subsequent image gallery on the left you can see colonies of Gomphonema forming overlapping fans. Gomphonema sp. is a motile diatom. It can detach from colonies and form a new colony elsewhere. Especially in newly created batch cultures, this Gomphonema can be seen moving between the still young colonies. This movement between such colonies is shown in the video on the left in 8-fold time-lapse.
Meridion circulare also forms fan-shaped colonies, which can be seen to the right.


Gomphonema sp.

Meridion sp.

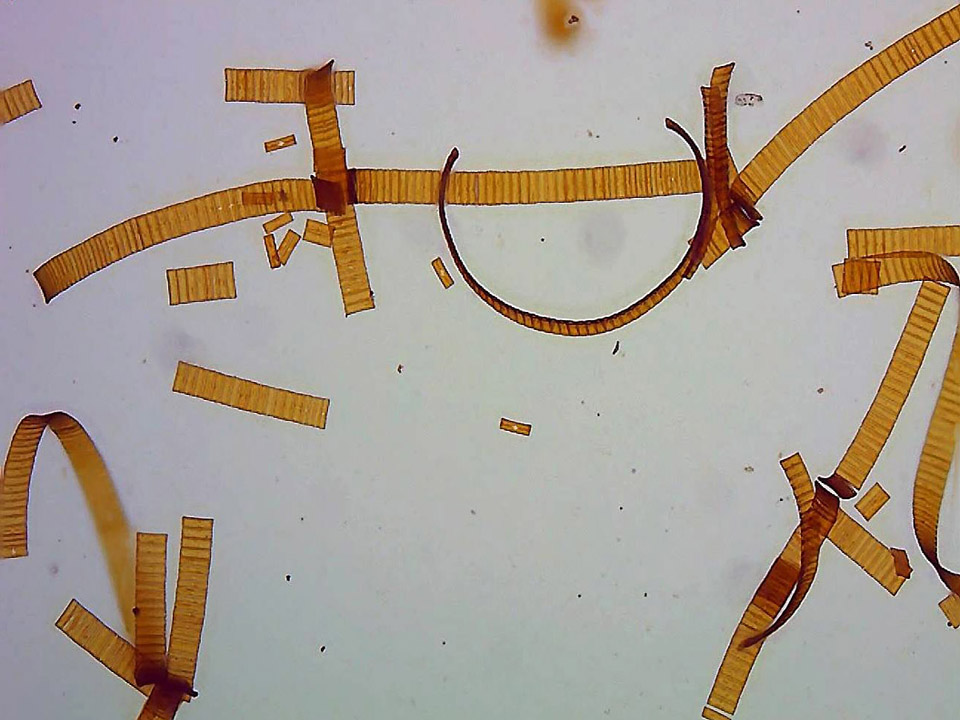

In the following series of pictures on the left there are pictures of an Eunotia culture in which long ribbon-shaped chains are formed. Eunotia is also motile. At another section there is a contribution on their complex movement patterns.

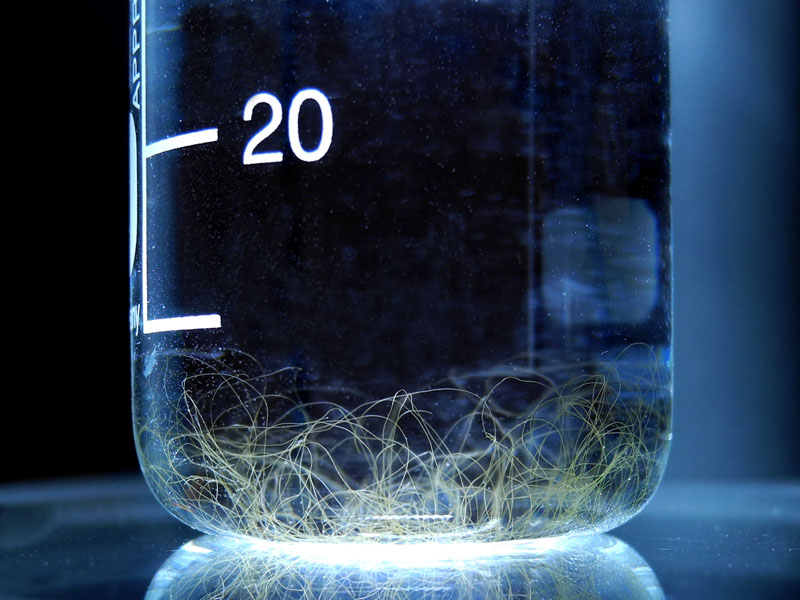

To the right you find pictures of Melosira. First you see a small beaker containing nutrient solution, into which a few fragments of a young Melosira colony have been given. Already after a few days in suitable lighting, a fine web of long colonies appeared. This web was taken with the stereo microscope at two magnifications. In order to achieve sufficient contrast, the photos were taken with dark field illumination. The original colony has already been broken into several fragments.


Eunotia sp.

Melosira sp.

Pictures from a Fragilaria culture are shown in the picture gallery at the bottom left.

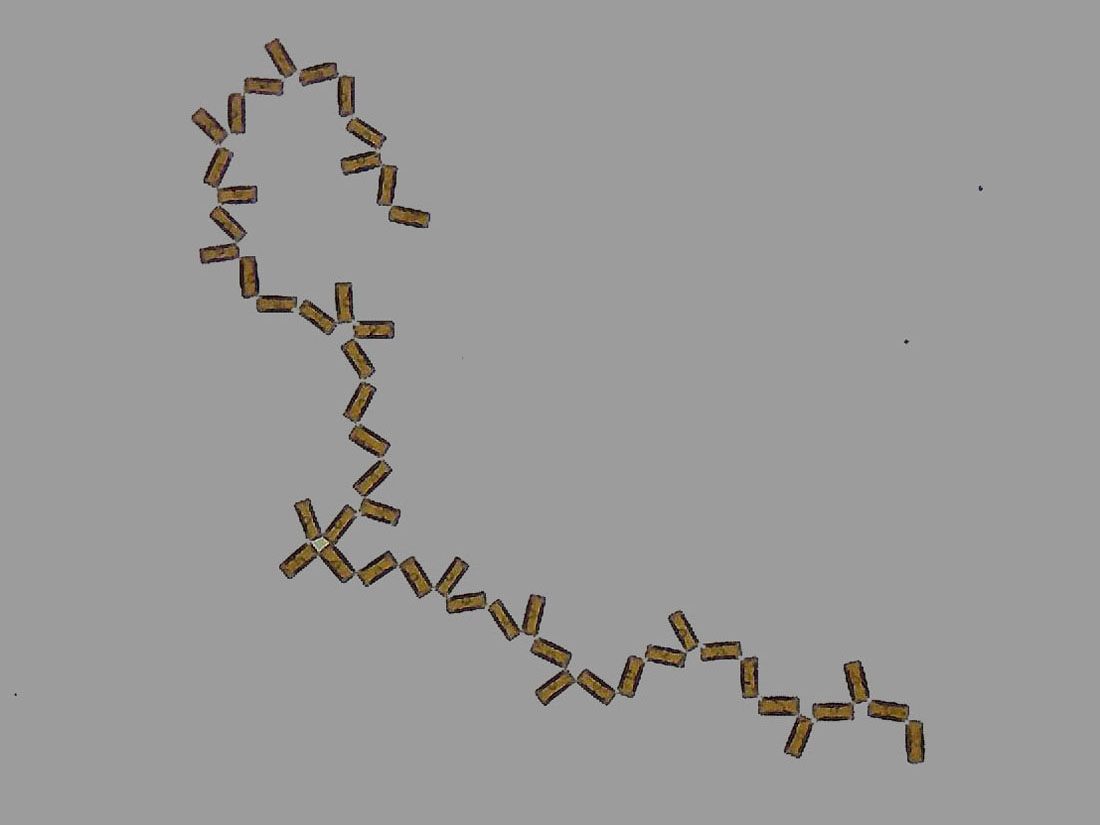

Images of Diatoma vulgaris in culture follow to the right. The diatoms do not lie parallel to each other, because they usually do not separate completely, so that zigzag forms develop. In the DIC images, the ESP pads connecting the diatoms are clearly visible.


Fragilaria sp. Diatoma vulgaris

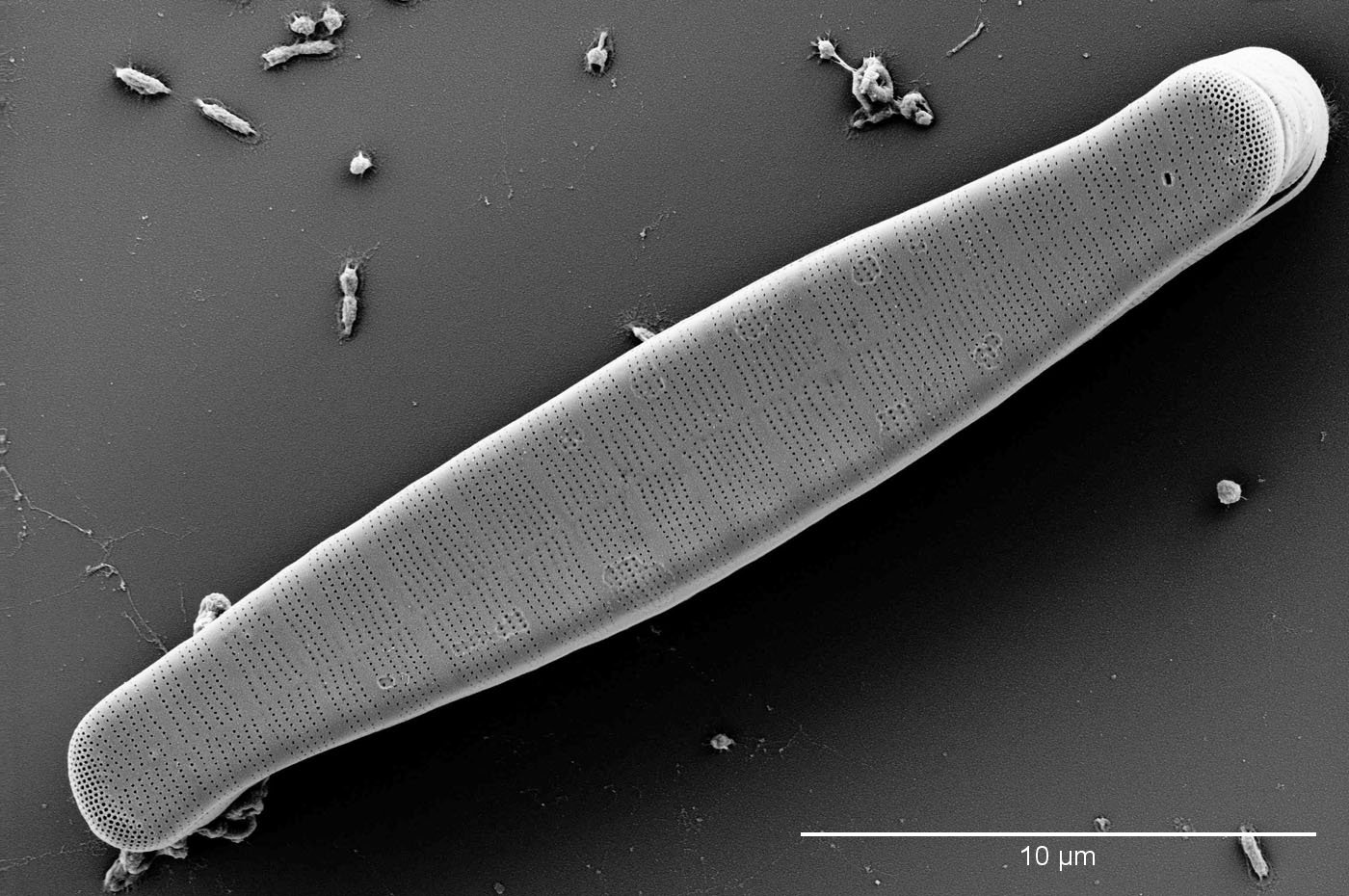

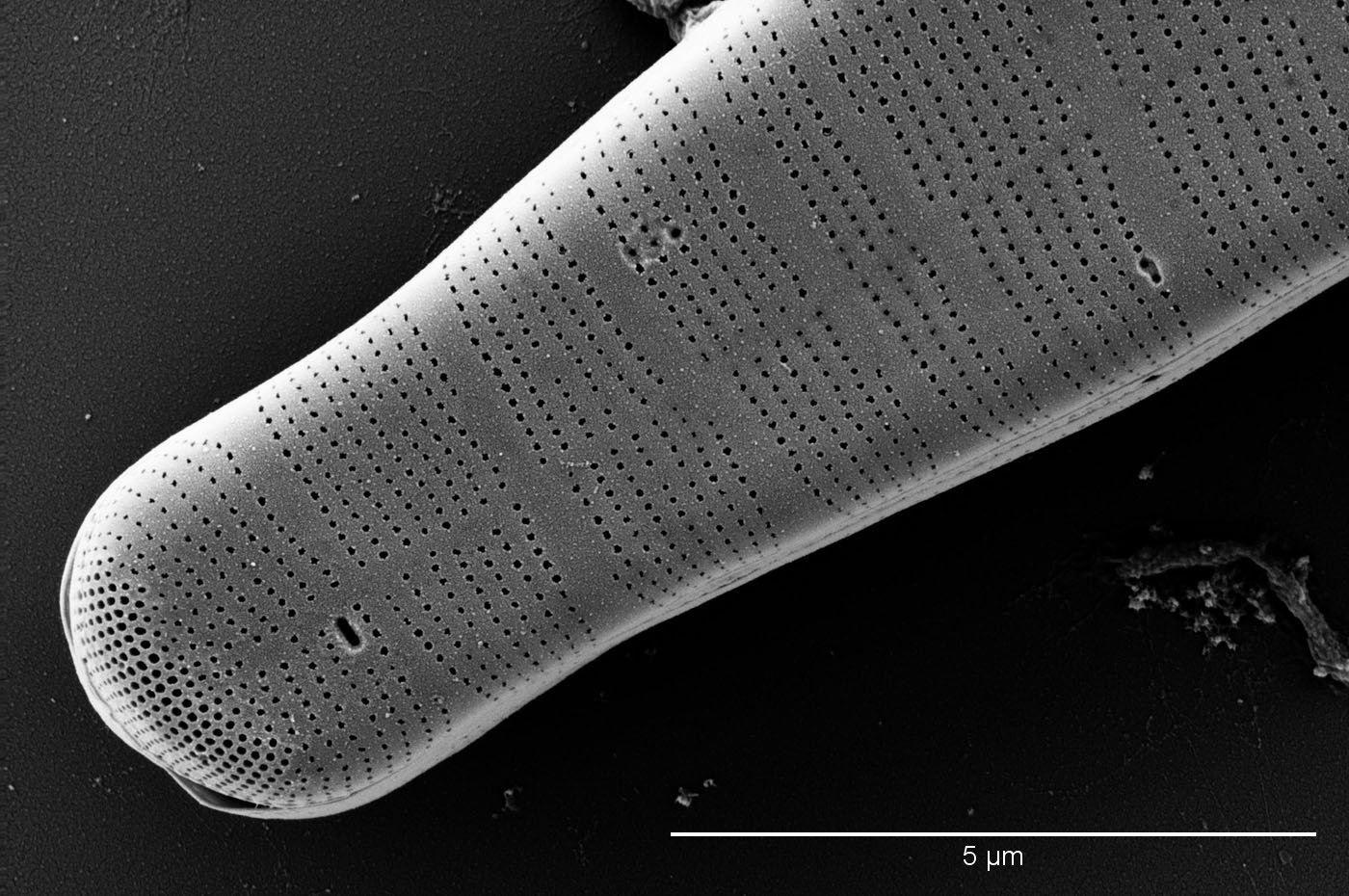

An image gallery of a Diatoma culture of unclear species is shown below left. This diatom also quickly develops a ball of connected diatoms in a beaker with nutrient solution. SEM images have been taken for this Diatoma cell line. Before inoculating a new culture, small round coverslips were placed into the Petri dish, which were then colonized by the diatoms. The diatoms on the cover glass were fixed with glutaraldehyde, rinsed with distilled water and dehydrated in baths with increasing isopropanol concentration. The SEM images were kindly produced by Dr. Wilfried Nisch, NMI Reutlingen, On the images (picture gallery below right) you can see well the extracellular polymeric substances (EPS), which connect the diatoms to a chain near the apices.

Diatoma sp. Diatoma sp. SEM images

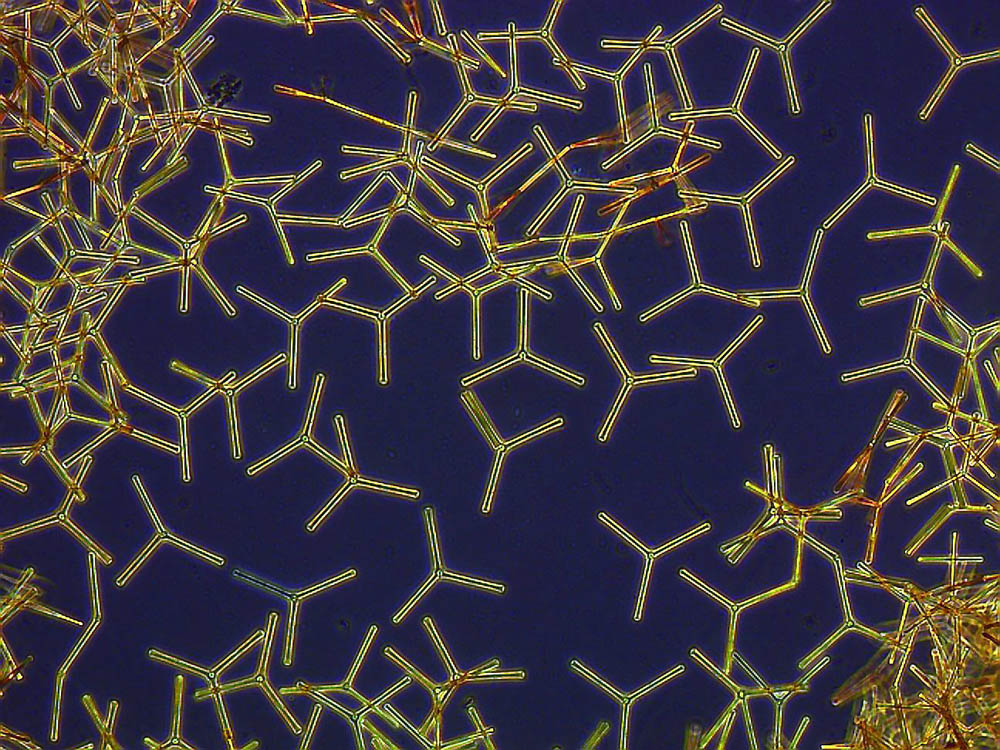

In the following image gallery some images of the cultures of Diatoma tenuis are shown. Longer chain-like structures, as well as short planktonic colony forms, are observed in this species. In culture, structures of one star formed by three diatoms and structures of up to four such connected stars occurred. In addition, there are transitional forms. The video on the right shows the sedimentation of Diatoma tenuis colonies in a Petri dish in 200-fold time lapse. The focus was on the bottom of the dish.



Diatoma tenuis (40x-Objektiv, DIC) Diatoma tenuis, 3600-facher Zeitraffer


With Diatoma ehrenbergii another species of the genus Diatoma could be kept in culture. As shown in the images of the image gallery on the lower left, chain-like colonies, which adhere to the substrate, occur in coexistence with planktonic, mostly stellate colonies. Thereby, the short planktonic colonies are often formed by separation from long sessile colonies.

To the right of these images are presented from cultures of Asterionella formosa. All cultivated planktonic species tended to multiply rapidly and reached high densities.

Diatoma ehrenbergii (40x-Objektiv, DIC)

Asterionella formosa (40x-Objektiv, DIC)


As a final example of chain-shaped colonies, a image gallery and a video of Bacillaria paxillifera (Bacillaria paradoxa) is shown below.


Bacillaria paxillifera (40x lens, DIC) Bacillaria paxillifera (20x lens, 4x time lapse)


The diatoms have a raphe and exhibit a remarkable mobility, which is apparent in parallel displacement of the

diatoms relative to neighbouring diatoms.

Dr. Nisch has also taken SEM images of Bacillaria paxillifera, which can be seen in an image gallery on the left. One can easily recognize the EPS, which serve the relative displacement. The preparation corresponds to that of the Diatoma species. Since thereby the samples were dried in the air after dehydration, artifacts are to be expected.



In nature, large colonies are easily broken into fragments by external influences such as a turbulent flow, so that only small colonies usually are found. Fragments can easily be drifted and may help spread.
